Shield RMSc fotavtrycksstandard

Shield RMSc footprint standard

Vilken rödpunktssikten kommer du att kunna montera på fästet med RMSc eller Shield RMSc fotavtryck? Kommer du att kunna installera Sig Sauer Romeo Zero på samma platta som Shield RMSc? Vi täcker den fulla kompatibiliteten för Shield RMSc fotavtryck i denna artikel.

Fotavtryckskompatibilitet förklaras

Vad betyder ett "fotavtryck"? Termen fotavtryck hänvisar till strukturen av socklarna och skruvhålen på basen av den optiska enheten.

Och vad betyder det om fotavtrycken är kompatibla?

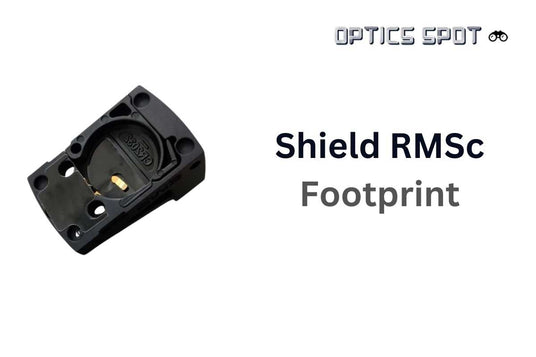

Varje optiskt sikte har en bas för montering. Basen består av stift på olika positioner och hål för skruvar som används för att fixera siktet till fästena. Om två sikten använder samma bas för montering, säger vi att de delar samma fotavtryck.

I denna artikel visar vi vilka rödpunktssikte sikten som delar samma fotavtryck.

Shield RMSc fotavtrycksmönster

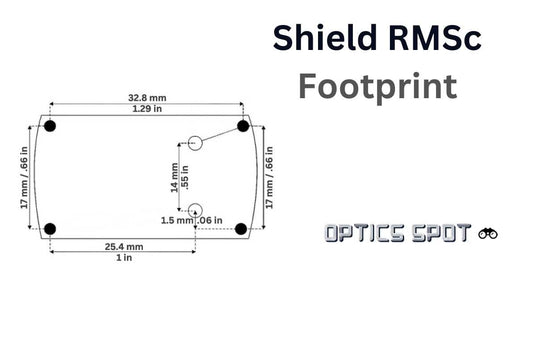

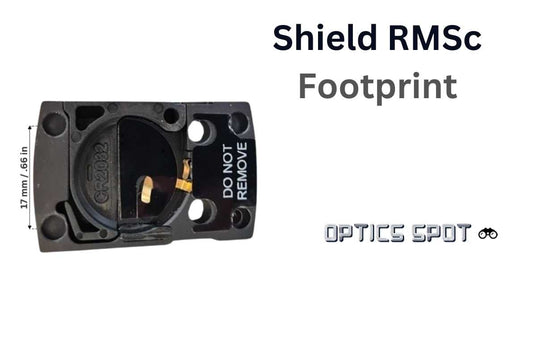

Shield RMSc fotavtryck består av fyra socklar i hörnen av siktet och två skruvhål i bakre delen av siktet.

Fram- och baksocklarna är 17mm / 0,66 tum från varandra. Från de bakre socklarna till de främre socklarna är avståndet 32,8mm / 1,29 tum. Positionen av dessa fyra socklar motsvarar positionen av stift som finns på monteringsytan för denna standard.

Skruvhålen är placerade i den bakre delen av den optiska enheten. Dessa fungerar för fixering av siktet till fästena. Dessa två skruvhål är 14mm / 0,55 tum från varandra.

Skruvarna som ska användas för dessa skruvhål är alltid inkluderade i paketet med siktet.

Kompatibla rödpunktssikten

RMSc fotavtryck delas av många andra tillverkare på marknaden.

Nedan hittar du en komplett lista över rödpunktssikte sikten som fungerar med Shield RMSc fotavtryck.

Shield RMSc standard

Rödpunktssikten med Shield RMSc fotavtryck

Visa alla

Hur man monterar rödpunktssikte med Shield RMSc fotavtryck

Det beror på vilken enhet du vill montera den på.

Andra standarder för fotavtryck

Det finns många olika baser för rödpunktssikte sikten, men de andra vanligaste är följande:
